6502 Instruction Set
HI  LONIBBLE

‐0  ‐1  ‐2  ‐3  ‐4  ‐5  ‐6  ‐7  ‐8  ‐9  ‐A  ‐B  ‐C  ‐D  ‐E  ‐F
0‐  BRK impl  ORA X,ind        ORA zpg  ASL zpg    PHP impl  ORA #  ASL A      ORA abs  ASL abs
1‐  BPL rel  ORA ind,Y        ORA zpg,X  ASL zpg,X    CLC impl  ORA abs,Y        ORA abs,X  ASL abs,X
2‐  JSR abs  AND X,ind      BIT zpg  AND zpg  ROL zpg    PLP impl  AND #  ROL A    BIT abs  AND abs  ROL abs
3‐  BMI rel  AND ind,Y        AND zpg,X  ROL zpg,X    SEC impl  AND abs,Y        AND abs,X  ROL abs,X
4‐  RTI impl  EOR X,ind        EOR zpg  LSR zpg    PHA impl  EOR #  LSR A    JMP abs  EOR abs  LSR abs
5‐  BVC rel  EOR ind,Y        EOR zpg,X  LSR zpg,X    CLI impl  EOR abs,Y        EOR abs,X  LSR abs,X
6‐  RTS impl  ADC X,ind        ADC zpg  ROR zpg    PLA impl  ADC #  ROR A    JMP ind  ADC abs  ROR abs
7‐  BVS rel  ADC ind,Y        ADC zpg,X  ROR zpg,X    SEI impl  ADC abs,Y        ADC abs,X  ROR abs,X
8‐    STA X,ind      STY zpg  STA zpg  STX zpg    DEY impl    TXA impl    STY abs  STA abs  STX abs
9‐  BCC rel  STA ind,Y      STY zpg,X  STA zpg,X  STX zpg,Y    TYA impl  STA abs,Y  TXS impl      STA abs,X
A‐  LDY #  LDA X,ind  LDX #    LDY zpg  LDA zpg  LDX zpg    TAY impl  LDA #  TAX impl    LDY abs  LDA abs  LDX abs
B‐  BCS rel  LDA ind,Y      LDY zpg,X  LDA zpg,X  LDX zpg,Y    CLV impl  LDA abs,Y  TSX impl    LDY abs,X  LDA abs,X  LDX abs,Y
C‐  CPY #  CMP X,ind      CPY zpg  CMP zpg  DEC zpg    INY impl  CMP #  DEX impl    CPY abs  CMP abs  DEC abs
D‐  BNE rel  CMP ind,Y        CMP zpg,X  DEC zpg,X    CLD impl  CMP abs,Y        CMP abs,X  DEC abs,X
E‐  CPX #  SBC X,ind      CPX zpg  SBC zpg  INC zpg    INX impl  SBC #  NOP impl    CPX abs  SBC abs  INC abs
F‐  BEQ rel  SBC ind,Y        SBC zpg,X  INC zpg,X    SED impl  SBC abs,Y        SBC abs,X  INC abs,X
Description
Address Modes
A  Accumulator  OPC A  operand is AC (implied single byte instruction)

abs  absolute  OPC $LLHH  operand is address $HHLL *
abs,X  absolute, Xindexed  OPC $LLHH,X  operand is address; effective address is address incremented by X with carry **
abs,Y  absolute, Yindexed  OPC $LLHH,Y  operand is address; effective address is address incremented by Y with carry **
#  immediate  OPC #$BB  operand is byte BB
impl  implied  OPC  operand implied
ind  indirect  OPC ($LLHH)  operand is address; effective address is contents of word at address: C.w($HHLL)
X,ind  Xindexed, indirect  OPC ($LL,X)  operand is zeropage address; effective address is word in (LL + X, LL + X + 1), inc. without carry: C.w($00LL + X)
ind,Y  indirect, Yindexed  OPC ($LL),Y  operand is zeropage address; effective address is word in (LL, LL + 1) incremented by Y with carry: C.w($00LL) + Y
rel  relative  OPC $BB  branch target is PC + signed offset BB ***
zpg  zeropage  OPC $LL  operand is zeropage address (hibyte is zero, address = $00LL)
zpg,X  zeropage, Xindexed  OPC $LL,X  operand is zeropage address; effective address is address incremented by X without carry **
zpg,Y  zeropage, Yindexed  OPC $LL,Y  operand is zeropage address; effective address is address incremented by Y without carry **
 *
 16bit address words are little endian, lo(w)byte first, followed by the hi(gh)byte.
(An assembler will use a human readable, bigendian notation as in $HHLL.)  **
 The available 16bit address space is conceived as consisting of pages of 256 bytes each, with
address hibytes represententing the page index. An increment with carry may affect the hibyte
and may thus result in a crossing of page boundaries, adding an extra cycle to the execution.
Increments without carry do not affect the hibyte of an address and no page transitions do occur.
Generally, increments of 16bit addresses include a carry, increments of zeropage addresses don't.
Notably this is not related in any way to the state of the carry bit of the accumulator.  ***
 Branch offsets are signed 8bit values, 128 ... +127, negative offsets in two's complement.
Page transitions may occur and add an extra cycle to the exucution.
Instructions by Name
 ADC
 add with carry
 AND
 and (with accumulator)
 ASL
 arithmetic shift left
 BCC
 branch on carry clear
 BCS
 branch on carry set
 BEQ
 branch on equal (zero set)
 BIT
 bit test
 BMI
 branch on minus (negative set)
 BNE
 branch on not equal (zero clear)
 BPL
 branch on plus (negative clear)
 BRK
 break / interrupt
 BVC
 branch on overflow clear
 BVS
 branch on overflow set
 CLC
 clear carry
 CLD
 clear decimal
 CLI
 clear interrupt disable
 CLV
 clear overflow
 CMP
 compare (with accumulator)
 CPX
 compare with X
 CPY
 compare with Y
 DEC
 decrement
 DEX
 decrement X
 DEY
 decrement Y
 EOR
 exclusive or (with accumulator)
 INC
 increment
 INX
 increment X
 INY
 increment Y
 JMP
 jump
 JSR
 jump subroutine
 LDA
 load accumulator
 LDX
 load X
 LDY
 load Y
 LSR
 logical shift right
 NOP
 no operation
 ORA
 or with accumulator
 PHA
 push accumulator
 PHP
 push processor status (SR)
 PLA
 pull accumulator
 PLP
 pull processor status (SR)
 ROL
 rotate left
 ROR
 rotate right
 RTI
 return from interrupt
 RTS
 return from subroutine
 SBC
 subtract with carry
 SEC
 set carry
 SED
 set decimal
 SEI
 set interrupt disable
 STA
 store accumulator
 STX
 store X
 STY
 store Y
 TAX
 transfer accumulator to X
 TAY
 transfer accumulator to Y
 TSX
 transfer stack pointer to X
 TXA
 transfer X to accumulator
 TXS
 transfer X to stack pointer
 TYA
 transfer Y to accumulator
Registers
PC  program counter  (16 bit)
AC  accumulator  (8 bit)
X  X register  (8 bit)
Y  Y register  (8 bit)
SR  status register [NVBDIZC]  (8 bit)
SP  stack pointer  (8 bit)
Note: The status register (SR) is also known as the P register.
SR Flags (bit 7 to bit 0)
N  Negative
V  Overflow
  ignored
B  Break
D  Decimal (use BCD for arithmetics)
I  Interrupt (IRQ disable)
Z  Zero
C  Carry
 The zero flag (Z) indicates a value of all zero bits and the negative flag (N) indicates the presence of a set sign bit in bitposition 7. These flags are always updated, whenever a value is transferred to a CPU register (A,X,Y) and as a result of any logical ALU operations. The Z and N flags are also updated by increment and decrement operations acting on a memory location.
 The carry flag (C) flag is used as a buffer and as a borrow in arithmetic operations. Any comparisons will update this additionally to the Z and N flags, as do shift and rotate operations.
 All arithmetic operations update the Z, N, C and V flags.
 The overflow flag (V) indicates overflow with signed binary arithmetics. As a signed byte represents a range of 128 to +127, an overflow can never occur when the operands are of opposite sign, since the result will never exceed this range. Thus, overflow may only occur, if both operands are of the same sign. Then, the result must be also of the same sign. Otherwise, overflow is detected and the overflow flag is set. (I.e., both operands have a zero in the sign position at bit 7, but bit 7 of the result is 1, or, both operands have the signbit set, but the result is positive.)
 The decimal flag (D) sets the ALU to binary coded decimal (BCD) mode for additions and subtractions (ADC, SBC).
 The interrupt inhibit flag (I) blocks any maskable interrupt requests (IRQ).
 The break flag (B) is not an actual flag implemented in a register, and rather
appears only, when the status register is pushed onto or pulled from the stack.
When pushed, it will be 1 when transfered by a BRK or PHP instruction, and
zero otherwise (i.e., when pushed by a hardware interrupt).
When pulled into the status register (by PLP or on RTI), it will be ignored.
In other words, the break flag will be inserted, whenever the status register is transferred to the stack by software (BRK or PHP), and will be zero, when transferred by hardware. Since there is no actual slot for the break flag, it will be always ignored, when retrieved (PLP or RTI). The break flag is not accessed by the CPU at anytime and there is no internal representation. Its purpose is more for patching, to discern an interrupt caused by a BRK instruction from a normal interrupt initiated by hardware.  Any of these flags (but the break flag) may be set or cleared by dedicated instructions. Moreover, there are branch instructions to conditionally divert the control flow depending on the respective state of the Z, N, C or V flag.
Processor Stack
LIFO, topdown, 8 bit range, 0x0100  0x01FF
Bytes, Words, Addressing
8 bit bytes, 16 bit words in lobytehibyte representation (LittleEndian).
16 bit address range, operands follow instruction codes.
Signed values are two's complement, sign in bit 7 (most significant bit).
(%11111111 = $FF = 1, %10000000 = $80 = 128, %01111111 = $7F = +127)
Signed binary and binary coded decimal (BCD) arithmetic modes.
System Vectors
$FFFA, $FFFB ... NMI (NonMaskable Interrupt) vector, 16bit (LB, HB)
$FFFC, $FFFD ... RES (Reset) vector, 16bit (LB, HB)
$FFFE, $FFFF ... IRQ (Interrupt Request) vector, 16bit (LB, HB)
Start/Reset Operations
An activelow reset line allows to hold the processor in a known disabled
state, while the system is initialized. As the reset line goes high, the
processor performs a start sequence of 7 cycles, at the end of which the
program counter (PC) is read from the address provided in the 16bit reset
vector at $FFFC (LBHB). Then, at the eighth cycle, the processor transfers
control by performing a JMP to the provided address.
Any other initializations are left to the thus executed program. (Notably,
instructions exist for the initialization and loading of all registers, but
for the program counter, which is provided by the reset vector at $FFFC.)
Instructions by Type
Transfer Instructions
Load, store, interregister transfer
Stack Instructions
These instructions transfer the accumulator or status register (flags) to and from the stack. The processor stack is a lastinfirstout (LIFO) stack of 256 bytes length, implemented at addresses $0100  $01FF. The stack grows down as new values are pushed onto it with the current insertion point maintained in the stack pointer register.
(When a byte is pushed onto the stack, it will be stored in the address indicated by the value currently in the stack pointer, which will be then decremented by 1. Conversely, when a value is pulled from the stack, the stack pointer is incremented. The stack pointer is accessible by the TSX and TXS instructions.)Decrements & Increments
Arithmetic Operations
See the Primer of 6502 Arithmetic Instructions below for details.
Logical Operations
Shift & Rotate Instructions
All shift and rotate instructions preserve the bit shifted out in the carry flag.
Flag Instructions
Comparisons
Generally, comparison instructions subtract the operand from the given register without affecting this register. Flags are still set as with a normal subtraction and thus the relation of the two values becomes accessible by the Zero, Carry and Negative flags.
(See the branch instructions below for how to evaluate flags.)Relation R − Op Z C N Register < Operand 0 0 sign bit of result Register = Operand 1 1 0 Register > Operand 0 1 sign bit of result Conditional Branch Instructions
Branch targets are relative, signed 8bit address offsets. (An offset of #0 corresponds to the immedately following address — or a rather odd and expensive NOP.)
Jumps & Subroutines
JSR and RTS affect the stack as the return address is pushed onto or pulled from the stack, respectively.
(JSR will first push the highbyte of the return address [PC+2] onto the stack, then the lowbyte. The stack will then contain, seen from the bottom or from the most recently added byte, [PC+2]L [PC+2]H.)Interrupts
A hardware interrupt (maskable IRQ and nonmaskable NMI), will cause the processor to put first the address currently in the program counter onto the stack (in HBLB order), followed by the value of the status register. (The stack will now contain, seen from the bottom or from the most recently added byte, SR PCL PCH with the stack pointer pointing to the address below the stored contents of status register.) Then, the processor will divert its control flow to the address provided in the two wordsize interrupt vectors at $FFFA (IRQ) and $FFFE (NMI).
A set interrupt disable flag will inhibit the execution of an IRQ, but not of a NMI, which will be executed anyways.
The break instruction (BRK) behaves like a NMI, but will push the value of PC+2 onto the stack to be used as the return address. Also, as with any software initiated transfer of the status register to the stack, the break flag will be found set on the respective value pushed onto the stack. Then, control is transferred to the address in the NMIvector at $FFFE.
In any way, the interrupt disable flag is set to inhibit any further IRQ as control is transferred to the interrupt handler specified by the respective interrupt vector.The RTI instruction restores the status register from the stack and behaves otherwise like the JSR instruction. (The break flag is always ignored as the status is read from the stack, as it isn't a real processor flag anyway.)
Other
6502 Address Modes in Detail
(This section, especially the diagrams included, is heavily inspired by the Acorn Atom manual "Atomic Theory and Practice" by David Johnson Davies, Acorn Computers Limited, 2^{nd} ed. 1980, p 118–121.)
Implied Addressing
These instructions act directly on one or more registers or flags internal to the CPU. Therefor, these instructions are principally singlebyte instructions, lacking an explicit operand. The operand is implied, as it is already provided by the very instruction.
Instructions targeting exclusively the contents of the accumulator may or may not be denoted by using an explicit "A" as the operand, depending on the flavor of syntax. (This may be regarded as a special address mode of its own, but it is really a special case of an implied instruction. It is still a singlebyte instruction and no operand is provided in machine language.)
Mnemonic Examples:
 CLC
 clear the carry flag
 ROL A
 rotate contents of accumulator left by one position
 ROL
 same as above, implicit notation (A implied)
 TXA
 transfer contents of Xregister to the accumulator
 PHA
 push the contents of the accumulator to the stack
 RTS
 return from subroutine (by pulling PC from stack)
Mind that some of these instructions, while simple in appearance, may be quite complex operations, like "PHA", which involves the accumulator, the stack pointer and memory access.
Immediate Addressing
Here, a literal operand is given immediately after the instruction. The operand is always an 8bit value and the total instruction length is always 2 bytes. In memory, the operand is a single byte following immediately after the instruction code. In assembler, the mode is usually indicated by a "#" prefix adjacent to the operand.
Mnemonic Examples:
 LDA #$07
 load the literal hexidecimal value "$7" into the accumulator
 ADC #$A0
 add the literal hexidecimal value "$A0" to the accumulator
 CPX #$32
 compare the Xregister to the literal hexidecimal value "$32"
Absolute Addressing
Absolute addressing modes provides the 16bit address of a memory location, the contents of which used as the operand to the instruction. In machine language, the address is provided in two bytes immediately after the instruction (making these 3byte instructions) in lowbyte, highbyte order (LLHH) or littleendian. In assembler, conventional numbers (HHLL order or bigendian words) are used to provide the address.
Absolute addresses are also used for the jump instructions JMP and JSR to provide the address for the next instruction to continue with in the control flow.
Mnemonic Examples:
 LDA $3010
 load the contents of address "$3010" into the accumulator
 ROL $08A0
 rotate the contents of address "$08A0" left by one position
 JMP $4000
 jump to (continue with) location "$4000"
ZeroPage Addressing
The 16bit address space available to the 6502 is thought to consist of 256 "pages" of 256 memory locations each ($00…$FF). In this model the highbyte of an address gives the page number and the lowbyte a location inside this page. The very first of these pages, where the highbyte is zero (addresses $0000…$00FF), is somewhat special.
The zeropage address mode is similar to absolute address mode, but these instructions use only a single byte for the operand, the lowbyte, while the highbyte is assumed to be zero by definition. Therefore, these instructions have a total length of just two bytes (one less than absolute mode) and take one CPU cycle less to execute, as there is one byte less to fetch.
Mnemonic Examples:
 LDA $80
 load the contents of address "$0080" into the accumulator
 BIT $A2
 perform bittest with the contents of address "$00A2"
 ASL $9A
 arithmetic shift left of the contents of location "$009A"
(One way to think of the zeropage is as a page of 256 additional registers, somewhat slower than the internal registers, but with zeropage instructions also faster executing than "normal" instructions. The zeropage has a few more tricks up its sleeve, making these addresses perform more like real registers, see below.)
Indexed Addressing: Absolute,X and Absolute,Y
Indexed addressing adds the contents of either the Xregister or the Yregister to the provided address to give the effective address, which provides the operand.
These instructions are usefull to e.g., load values from tables or to write to a continuous segment of memory in a loop. The most basic forms are "absolute,X" and "absolute,X", where either the X or the Yregister, respectively, is added to a given base address. As the base address is a 16bit value, these are generally 3byte instructions. Since there is an additional operation to perform to determine the effective address, these instructions are one cycle slower than those using absolute addressing mode.*
Mnemonic Examples:
 LDA $3120,X
 load the contents of address "$3120 + X" into A
 LDX $8240,Y
 load the contents of address "$8240 + Y" into X
 INC $1400,X
 increment the contents of address "$1400 + X"
*) If the addition of the contents of the index register effects in a change of the highbyte given by the base address so that the effective address is on the next memory page, the additional operation to increment the highbyte takes another CPU cycle. This is also known as a crossing of page boundaries.
Indexed Addressing: ZeroPage,X (and ZeroPage,Y)
As with absolute addressing, there is also a zeropage mode for indexed addressing. However, this is generally only available with the Xregister. (The only exception to this is LDX, which has an indexed zeropage mode utilizing the Yregister.)
As we have already seen with normal zeropage mode, these instructions are one byte less in total length (two bytes) and take one CPU cycle less than instructions in absolute indexed mode.Unlike absolute indexed instructions with 16bit base addresses, zeropage indexed instructions never affect the highbyte of the effective address, which will simply wrap around in the zeropage, and there is no penalty for crossing any page boundaries.
Mnemonic Examples:
 LDA $80,X
 load the contents of address "$0080 + X" into A
 LSR $82,X
 shift the contents of address "$0082 + X" left
 LDX $60,Y
 load the contents of address "$0060 + Y" into X
Indirect Addressing
This mode looks up a given address and uses the contents of this address and the next one (in LLHH littleendian order) as the effective address. In its basic form, this mode is available for the JMP instruction only. (Its generally use is jump vectors and jump tables.)
Like the absolute JMP instruction it uses a 16bit address (3 bytes in total), but takes two additional CPU cycles to execute, since there are two additional bytes to fetch for the lookup of the effective jump target.Generally, indirect addressing is denoted by putting the lookup address in parenthesis.
Mnemonic Example:
 JMP ($FF82)
 jump to address given in addresses "$FF82" and "$FF83"
PreIndexed Indirect, "(ZeroPage,X)"
Indexed indirect address modes are generally available only for instructions supplying an operand to the accumulator (LDA, STA, ADC, SBC, AND, ORA, EOR, etc). The placement of the index register inside or outside of the parenthesis indicating the address lookup will give you clue what these instructions are doing.
Preindexed indirect address mode is only available in combination with the Xregister. It works much like the "zeropage,X" mode, but, after the Xregister has been added to the base address, instead of directly accessing this, an additional lookup is performed, reading the contents of resulting address and the next one (in LLHH littleendian order), in order to determine the effective address.
Like with "zeropage,X" mode, the total instruction length is 2 bytes, but there are two additional CPU cycles in order to fetch the effective 16bit address. As "zeropage,X" mode, a lookup address will never overflow into the next page, but will simply wrap around in the zeropage.
These instructions are useful, whenever we want to loop over a table of pointers to disperse addresses, or where we want to apply the same operation to various addresses, which we have stored as a table in the zeropage.
Mnemonic Examples:
 LDA ($70,X)
 load the contents of the location given in addresses
"$0070+X" and "$0070+1+X" into A  STA ($A2,X)
 store the contents of A in the location given in
addresses "$00A2+X" and "$00A3+X"  EOR ($BA,X)
 perform an exlusive OR of the contents of A and the contents
of the location given in addresses "$00BA+X" and "$00BB+X"
PostIndexed Indirect, "(ZeroPage),Y"
Postindexed indirect addressing is only available in combination with the Yregister. As indicated by the indexing term ",Y" being appended to the outside of the parenthesis indicating the indirect lookup, here, a pointer is first read (from the given zeropage address) and resolved and only then the contents of the Yregister is added to this to give the effective address.
Like with "zeropage,Y" mode, the total instruction length is 2 bytes, but there it takes an additional CPU cycles to resolve and index the 16bit pointer. As with "absolute,X" mode, the effective address may overflow into the next page, in the case of which the execution uses an extra CPU cycle.
These instructions are useful, wherever we want to perform lookups on varying bases addresses or whenever we want to loop over tables, the base address of which we have stored in the zeropage.
Mnemonic Examples:
 LDA ($70),Y
 add the contents of the Yregister to the pointer provided in
"$0070" and "$0071" and load the contents of this address into A  STA ($A2),Y
 store the contents of A in the location given by the pointer
in "$00A2" and "$00A3" plus the contents of the Yregister  EOR ($BA),Y
 perform an exlusive OR of the contents of A and the address
given by the addition of Y to the pointer in "$00BA" and "$00BB"
Relative Addressing (Conditional Branching)
This final address mode is exlusive to conditional branch instructions, which branch in the execution path depending on the state of a given CPU flag. Here, the instruction provides only a relative offset, which is added to the contents of the program counter (PC) as it points to the immediate next instruction. The relative offset is a signed single byte value in two's complement encoding (giving a range of −128…+127), which allows for branching up to half a page forwards and backwards.
On the one hand, this makes these instructions compact, fast and relocatable at the same time. On the other hand, we have to mind that our branch target is no farther away than half a memory page.Generally, an assembler will take care of this and we only have to provide the target address, not having to worry about relative addressing.
These instructions are always of 2 bytes length and perform in 2 CPU cycles, if the branch is not taken (the condition resolving to 'false'), and 3 cycles, if the branch is taken (when the condition is true). If a branch is taken and the target is on a different page, this adds another CPU cycle (4 in total).
Mnemonic Examples:
 BEQ $1005
 branch to location "$1005", if the zero flag is set.
if the current address is $1000, this will give an offset of $03.  BCS $08C4
 branch to location "$08C4", if the carry flag is set.
if the current address is $08D4, this will give an offset of $EE (−$12).  BCC $084A
 branch to location "$084A", if the carry flag is clear.

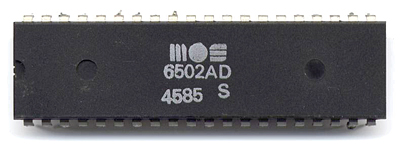

Vendor
MOS Technology, 1975
6502 Instructions in Detail
 ADC

Add Memory to Accumulator with Carry
A + M + C > A, C
N Z C I D V + + +   + addressing assembler opc bytes cycles immediate ADC #oper 69 2 2 zeropage ADC oper 65 2 3 zeropage,X ADC oper,X 75 2 4 absolute ADC oper 6D 3 4 absolute,X ADC oper,X 7D 3 4* absolute,Y ADC oper,Y 79 3 4* (indirect,X) ADC (oper,X) 61 2 6 (indirect),Y ADC (oper),Y 71 2 5*  AND

AND Memory with Accumulator
A AND M > A
N Z C I D V + +     addressing assembler opc bytes cycles immediate AND #oper 29 2 2 zeropage AND oper 25 2 3 zeropage,X AND oper,X 35 2 4 absolute AND oper 2D 3 4 absolute,X AND oper,X 3D 3 4* absolute,Y AND oper,Y 39 3 4* (indirect,X) AND (oper,X) 21 2 6 (indirect),Y AND (oper),Y 31 2 5*  ASL

Shift Left One Bit (Memory or Accumulator)
C < [76543210] < 0
N Z C I D V + + +    addressing assembler opc bytes cycles accumulator ASL A 0A 1 2 zeropage ASL oper 06 2 5 zeropage,X ASL oper,X 16 2 6 absolute ASL oper 0E 3 6 absolute,X ASL oper,X 1E 3 7  BCC

Branch on Carry Clear
branch on C = 0
N Z C I D V       addressing assembler opc bytes cycles relative BCC oper 90 2 2**  BCS

Branch on Carry Set
branch on C = 1
N Z C I D V       addressing assembler opc bytes cycles relative BCS oper B0 2 2**  BEQ

Branch on Result Zero
branch on Z = 1
N Z C I D V       addressing assembler opc bytes cycles relative BEQ oper F0 2 2**  BIT

Test Bits in Memory with Accumulator
bits 7 and 6 of operand are transfered to bit 7 and 6 of SR (N,V);
the zeroflag is set according to the result of the operand AND
the accumulator (set, if the result is zero, unset otherwise).
This allows a quick check of a few bits at once without affecting
any of the registers, other than the status register (SR).A AND M, M7 > N, M6 > V
N Z C I D V M7 +    M6 addressing assembler opc bytes cycles zeropage BIT oper 24 2 3 absolute BIT oper 2C 3 4  BMI

Branch on Result Minus
branch on N = 1
N Z C I D V       addressing assembler opc bytes cycles relative BMI oper 30 2 2**  BNE

Branch on Result not Zero
branch on Z = 0
N Z C I D V       addressing assembler opc bytes cycles relative BNE oper D0 2 2**  BPL

Branch on Result Plus
branch on N = 0
N Z C I D V       addressing assembler opc bytes cycles relative BPL oper 10 2 2**  BRK

Force Break
BRK initiates a software interrupt similar to a hardware
interrupt (IRQ). The return address pushed to the stack is
PC+2, providing an extra byte of spacing for a break mark
(identifying a reason for the break.)
The status register will be pushed to the stack with the break
flag set to 1. However, when retrieved during RTI or by a PLP
instruction, the break flag will be ignored.
The interrupt disable flag is not set automatically.interrupt,
push PC+2, push SRN Z C I D V    1   addressing assembler opc bytes cycles implied BRK 00 1 7  BVC

Branch on Overflow Clear
branch on V = 0
N Z C I D V       addressing assembler opc bytes cycles relative BVC oper 50 2 2**  BVS

Branch on Overflow Set
branch on V = 1
N Z C I D V       addressing assembler opc bytes cycles relative BVS oper 70 2 2**  CLC

Clear Carry Flag
0 > C
N Z C I D V   0    addressing assembler opc bytes cycles implied CLC 18 1 2  CLD

Clear Decimal Mode
0 > D
N Z C I D V     0  addressing assembler opc bytes cycles implied CLD D8 1 2  CLI

Clear Interrupt Disable Bit
0 > I
N Z C I D V    0   addressing assembler opc bytes cycles implied CLI 58 1 2  CLV

Clear Overflow Flag
0 > V
N Z C I D V      0 addressing assembler opc bytes cycles implied CLV B8 1 2  CMP

Compare Memory with Accumulator
A  M
N Z C I D V + + +    addressing assembler opc bytes cycles immediate CMP #oper C9 2 2 zeropage CMP oper C5 2 3 zeropage,X CMP oper,X D5 2 4 absolute CMP oper CD 3 4 absolute,X CMP oper,X DD 3 4* absolute,Y CMP oper,Y D9 3 4* (indirect,X) CMP (oper,X) C1 2 6 (indirect),Y CMP (oper),Y D1 2 5*  CPX

Compare Memory and Index X
X  M
N Z C I D V + + +    addressing assembler opc bytes cycles immediate CPX #oper E0 2 2 zeropage CPX oper E4 2 3 absolute CPX oper EC 3 4  CPY

Compare Memory and Index Y
Y  M
N Z C I D V + + +    addressing assembler opc bytes cycles immediate CPY #oper C0 2 2 zeropage CPY oper C4 2 3 absolute CPY oper CC 3 4  DEC

Decrement Memory by One
M  1 > M
N Z C I D V + +     addressing assembler opc bytes cycles zeropage DEC oper C6 2 5 zeropage,X DEC oper,X D6 2 6 absolute DEC oper CE 3 6 absolute,X DEC oper,X DE 3 7  DEX

Decrement Index X by One
X  1 > X
N Z C I D V + +     addressing assembler opc bytes cycles implied DEX CA 1 2  DEY

Decrement Index Y by One
Y  1 > Y
N Z C I D V + +     addressing assembler opc bytes cycles implied DEY 88 1 2  EOR

ExclusiveOR Memory with Accumulator
A EOR M > A
N Z C I D V + +     addressing assembler opc bytes cycles immediate EOR #oper 49 2 2 zeropage EOR oper 45 2 3 zeropage,X EOR oper,X 55 2 4 absolute EOR oper 4D 3 4 absolute,X EOR oper,X 5D 3 4* absolute,Y EOR oper,Y 59 3 4* (indirect,X) EOR (oper,X) 41 2 6 (indirect),Y EOR (oper),Y 51 2 5*  INC

Increment Memory by One
M + 1 > M
N Z C I D V + +     addressing assembler opc bytes cycles zeropage INC oper E6 2 5 zeropage,X INC oper,X F6 2 6 absolute INC oper EE 3 6 absolute,X INC oper,X FE 3 7  INX

Increment Index X by One
X + 1 > X
N Z C I D V + +     addressing assembler opc bytes cycles implied INX E8 1 2  INY

Increment Index Y by One
Y + 1 > Y
N Z C I D V + +     addressing assembler opc bytes cycles implied INY C8 1 2  JMP

Jump to New Location
(PC+1) > PCL
(PC+2) > PCHN Z C I D V       addressing assembler opc bytes cycles absolute JMP oper 4C 3 3 indirect JMP (oper) 6C 3 5  JSR

Jump to New Location Saving Return Address
push (PC+2),
(PC+1) > PCL
(PC+2) > PCHN Z C I D V       addressing assembler opc bytes cycles absolute JSR oper 20 3 6  LDA

Load Accumulator with Memory
M > A
N Z C I D V + +     addressing assembler opc bytes cycles immediate LDA #oper A9 2 2 zeropage LDA oper A5 2 3 zeropage,X LDA oper,X B5 2 4 absolute LDA oper AD 3 4 absolute,X LDA oper,X BD 3 4* absolute,Y LDA oper,Y B9 3 4* (indirect,X) LDA (oper,X) A1 2 6 (indirect),Y LDA (oper),Y B1 2 5*  LDX

Load Index X with Memory
M > X
N Z C I D V + +     addressing assembler opc bytes cycles immediate LDX #oper A2 2 2 zeropage LDX oper A6 2 3 zeropage,Y LDX oper,Y B6 2 4 absolute LDX oper AE 3 4 absolute,Y LDX oper,Y BE 3 4*  LDY

Load Index Y with Memory
M > Y
N Z C I D V + +     addressing assembler opc bytes cycles immediate LDY #oper A0 2 2 zeropage LDY oper A4 2 3 zeropage,X LDY oper,X B4 2 4 absolute LDY oper AC 3 4 absolute,X LDY oper,X BC 3 4*  LSR

Shift One Bit Right (Memory or Accumulator)
0 > [76543210] > C
N Z C I D V 0 + +    addressing assembler opc bytes cycles accumulator LSR A 4A 1 2 zeropage LSR oper 46 2 5 zeropage,X LSR oper,X 56 2 6 absolute LSR oper 4E 3 6 absolute,X LSR oper,X 5E 3 7  NOP

No Operation

N Z C I D V       addressing assembler opc bytes cycles implied NOP EA 1 2  ORA

OR Memory with Accumulator
A OR M > A
N Z C I D V + +     addressing assembler opc bytes cycles immediate ORA #oper 09 2 2 zeropage ORA oper 05 2 3 zeropage,X ORA oper,X 15 2 4 absolute ORA oper 0D 3 4 absolute,X ORA oper,X 1D 3 4* absolute,Y ORA oper,Y 19 3 4* (indirect,X) ORA (oper,X) 01 2 6 (indirect),Y ORA (oper),Y 11 2 5*  PHA

Push Accumulator on Stack
push A
N Z C I D V       addressing assembler opc bytes cycles implied PHA 48 1 3  PHP

Push Processor Status on Stack
The status register will be pushed with the break
flag and bit 5 set to 1.push SR
N Z C I D V       addressing assembler opc bytes cycles implied PHP 08 1 3  PLA

Pull Accumulator from Stack
pull A
N Z C I D V + +     addressing assembler opc bytes cycles implied PLA 68 1 4  PLP

Pull Processor Status from Stack
The status register will be pulled with the break
flag and bit 5 ignored.pull SR
N Z C I D V from stack addressing assembler opc bytes cycles implied PLP 28 1 4  ROL

Rotate One Bit Left (Memory or Accumulator)
C < [76543210] < C
N Z C I D V + + +    addressing assembler opc bytes cycles accumulator ROL A 2A 1 2 zeropage ROL oper 26 2 5 zeropage,X ROL oper,X 36 2 6 absolute ROL oper 2E 3 6 absolute,X ROL oper,X 3E 3 7  ROR

Rotate One Bit Right (Memory or Accumulator)
C > [76543210] > C
N Z C I D V + + +    addressing assembler opc bytes cycles accumulator ROR A 6A 1 2 zeropage ROR oper 66 2 5 zeropage,X ROR oper,X 76 2 6 absolute ROR oper 6E 3 6 absolute,X ROR oper,X 7E 3 7  RTI

Return from Interrupt
The status register is pulled with the break flag
and bit 5 ignored. Then PC is pulled from the stack.pull SR, pull PC
N Z C I D V from stack addressing assembler opc bytes cycles implied RTI 40 1 6  RTS

Return from Subroutine
pull PC, PC+1 > PC
N Z C I D V       addressing assembler opc bytes cycles implied RTS 60 1 6  SBC

Subtract Memory from Accumulator with Borrow
A  M  C̅ > A
N Z C I D V + + +   + addressing assembler opc bytes cycles immediate SBC #oper E9 2 2 zeropage SBC oper E5 2 3 zeropage,X SBC oper,X F5 2 4 absolute SBC oper ED 3 4 absolute,X SBC oper,X FD 3 4* absolute,Y SBC oper,Y F9 3 4* (indirect,X) SBC (oper,X) E1 2 6 (indirect),Y SBC (oper),Y F1 2 5*  SEC

Set Carry Flag
1 > C
N Z C I D V   1    addressing assembler opc bytes cycles implied SEC 38 1 2  SED

Set Decimal Flag
1 > D
N Z C I D V     1  addressing assembler opc bytes cycles implied SED F8 1 2  SEI

Set Interrupt Disable Status
1 > I
N Z C I D V    1   addressing assembler opc bytes cycles implied SEI 78 1 2  STA

Store Accumulator in Memory
A > M
N Z C I D V       addressing assembler opc bytes cycles zeropage STA oper 85 2 3 zeropage,X STA oper,X 95 2 4 absolute STA oper 8D 3 4 absolute,X STA oper,X 9D 3 5 absolute,Y STA oper,Y 99 3 5 (indirect,X) STA (oper,X) 81 2 6 (indirect),Y STA (oper),Y 91 2 6  STX

Store Index X in Memory
X > M
N Z C I D V       addressing assembler opc bytes cycles zeropage STX oper 86 2 3 zeropage,Y STX oper,Y 96 2 4 absolute STX oper 8E 3 4  STY

Sore Index Y in Memory
Y > M
N Z C I D V       addressing assembler opc bytes cycles zeropage STY oper 84 2 3 zeropage,X STY oper,X 94 2 4 absolute STY oper 8C 3 4  TAX

Transfer Accumulator to Index X
A > X
N Z C I D V + +     addressing assembler opc bytes cycles implied TAX AA 1 2  TAY

Transfer Accumulator to Index Y
A > Y
N Z C I D V + +     addressing assembler opc bytes cycles implied TAY A8 1 2  TSX

Transfer Stack Pointer to Index X
SP > X
N Z C I D V + +     addressing assembler opc bytes cycles implied TSX BA 1 2  TXA

Transfer Index X to Accumulator
X > A
N Z C I D V + +     addressing assembler opc bytes cycles implied TXA 8A 1 2  TXS

Transfer Index X to Stack Register
X > SP
N Z C I D V       addressing assembler opc bytes cycles implied TXS 9A 1 2  TYA

Transfer Index Y to Accumulator
Y > A
N Z C I D V + +     addressing assembler opc bytes cycles implied TYA 98 1 2
 *
 add 1 to cycles if page boundary is crossed
 **
 add 1 to cycles if branch occurs on same page
add 2 to cycles if branch occurs to different page
Legend to Flags:
 +
 modified

 not modified
 1
 set
 0
 cleared
 M6
 memory bit 6
 M7
 memory bit 7
Note on assembler syntax:
Some assemblers employ "OPC *oper" or a ".b" extension
to the mneomonic for forced zeropage addressing.
"Illegal" Opcodes and Undocumented Instructions
The following instructions are undocumented are not guaranteed to work.
Some are highly unstable, some may even start two asynchronous threads competing in race condition with the winner determined by such miniscule factors as temperature or minor differences in the production series, at other times, the outcome depends on the exact values involved and the chip series.
Use with care and at your own risk.
There are several mnemonics for various opcodes. Here, they are (mostly) the same as those used by the ACME and DASM assemblers with known synonyms provided in parentheses:
 ALR (ASR)
 ANC
 ANC (ANC2)
 ANE (XAA)
 ARR
 DCP (DCM)
 ISC (ISB, INS)
 LAS (LAR)
 LAX
 LXA (LAX immediate)
 RLA
 RRA
 SAX (AXS, AAX)
 SBX (AXS, SAX)
 SHA (AHX, AXA)
 SHX (A11, SXA, XAS)
 SHY (A11, SYA, SAY)
 SLO (ASO)
 SRE (LSE)
 TAS (XAS, SHS)
 USBC (SBC)
 NOPs (including DOP, TOP)
 JAM (KIL, HLT)
"Illegal" Opcodes in Details
Legend to markers used in the instruction details:
 *
 add 1 to cycles if page boundary is crossed
 †
 unstable
 ††
 highly unstable
 ALR (ASR)

AND oper + LSR
A AND oper, 0 > [76543210] > C
N Z C I D V + + +    addressing assembler opc bytes cycles immediate ALR #oper 4B 2 2  ANC

AND oper + set C as ASL
A AND oper, bit(7) > C
N Z C I D V + + +    addressing assembler opc bytes cycles immediate ANC #oper 0B 2 2  ANC (ANC2)

AND oper + set C as ROL
effectively the same as instr. 0B
A AND oper, bit(7) > C
N Z C I D V + + +    addressing assembler opc bytes cycles immediate ANC #oper 2B 2 2  ANE (XAA)

* OR X + AND oper
Highly unstable, do not use.A base value in A is determined based on the contets of A and a constant, which may be typically $00, $ff, $ee, etc. The value of this constant depends on temerature, the chip series, and maybe other factors, as well.
In order to eliminate these uncertaincies from the equation, use either 0 as the operand or a value of $FF in the accumulator.(A OR CONST) AND X AND oper > A
N Z C I D V + +     addressing assembler opc bytes cycles immediate ANE #oper 8B 2 2 ††  ARR

AND oper + ROR
This operation involves the adder:
Vflag is set according to (A AND oper) + oper
The carry is not set, but bit 7 (sign) is exchanged with the carryA AND oper, C > [76543210] > C
N Z C I D V + + +   + addressing assembler opc bytes cycles immediate ARR #oper 6B 2 2  DCP (DCM)

DEC oper + CMP oper
M  1 > M, A  M
Decrements the operand and then compares the result to the accumulator.
N Z C I D V + + +    addressing assembler opc bytes cycles zeropage DCP oper C7 2 5 zeropage,X DCP oper,X D7 2 6 absolute DCP oper CF 3 6 absolut,X DCP oper,X DF 3 7 absolut,Y DCP oper,Y DB 3 7 (indirect,X) DCP (oper,X) C3 2 8 (indirect),Y DCP (oper),Y D3 2 8  ISC (ISB, INS)

INC oper + SBC oper
M + 1 > M, A  M  C̅ > A
N Z C I D V + + +   + addressing assembler opc bytes cycles zeropage ISC oper E7 2 5 zeropage,X ISC oper,X F7 2 6 absolute ISC oper EF 3 6 absolut,X ISC oper,X FF 3 7 absolut,Y ISC oper,Y FB 3 7 (indirect,X) ISC (oper,X) E3 2 8 (indirect),Y ISC (oper),Y F3 2 8  LAS (LAR)

LDA/TSX oper
M AND SP > A, X, SP
N Z C I D V + +     addressing assembler opc bytes cycles absolut,Y LAS oper,Y BB 3 4*  LAX

LDA oper + LDX oper
M > A > X
N Z C I D V + +     addressing assembler opc bytes cycles zeropage LAX oper A7 2 3 zeropage,Y LAX oper,Y B7 2 4 absolute LAX oper AF 3 4 absolut,Y LAX oper,Y BF 3 4* (indirect,X) LAX (oper,X) A3 2 6 (indirect),Y LAX (oper),Y B3 2 5*  LXA (LAX immediate)

Store * AND oper in A and X
Highly unstable, involves a 'magic' constant, see ANE
(A OR CONST) AND oper > A > X
N Z C I D V + +     addressing assembler opc bytes cycles immediate LXA #oper AB 2 2 ††  RLA

ROL oper + AND oper
M = C < [76543210] < C, A AND M > A
N Z C I D V + + +    addressing assembler opc bytes cycles zeropage RLA oper 27 2 5 zeropage,X RLA oper,X 37 2 6 absolute RLA oper 2F 3 6 absolut,X RLA oper,X 3F 3 7 absolut,Y RLA oper,Y 3B 3 7 (indirect,X) RLA (oper,X) 23 2 8 (indirect),Y RLA (oper),Y 33 2 8  RRA

ROR oper + ADC oper
M = C > [76543210] > C, A + M + C > A, C
N Z C I D V + + +   + addressing assembler opc bytes cycles zeropage RRA oper 67 2 5 zeropage,X RRA oper,X 77 2 6 absolute RRA oper 6F 3 6 absolut,X RRA oper,X 7F 3 7 absolut,Y RRA oper,Y 7B 3 7 (indirect,X) RRA (oper,X) 63 2 8 (indirect),Y RRA (oper),Y 73 2 8  SAX (AXS, AAX)

A and X are put on the bus at the same time (resulting effectively in an AND operation) and stored in M
A AND X > M
N Z C I D V       addressing assembler opc bytes cycles zeropage SAX oper 87 2 3 zeropage,Y SAX oper,Y 97 2 4 absolute SAX oper 8F 3 4 (indirect,X) SAX (oper,X) 83 2 6  SBX (AXS, SAX)

CMP and DEX at once, sets flags like CMP
(A AND X)  oper > X
N Z C I D V + + +    addressing assembler opc bytes cycles immediate SBX #oper CB 2 2  SHA (AHX, AXA)

Stores A AND X AND (highbyte of addr. + 1) at addr.
unstable: sometimes 'AND (H+1)' is dropped, page boundary crossings may not work (with the highbyte of the value used as the highbyte of the address)
A AND X AND (H+1) > M
N Z C I D V       addressing assembler opc bytes cycles absolut,Y SHA oper,Y 9F 3 5 † (indirect),Y SHA (oper),Y 93 2 6 †  SHX (A11, SXA, XAS)

Stores X AND (highbyte of addr. + 1) at addr.
unstable: sometimes 'AND (H+1)' is dropped, page boundary crossings may not work (with the highbyte of the value used as the highbyte of the address)
X AND (H+1) > M
N Z C I D V       addressing assembler opc bytes cycles absolut,Y SHX oper,Y 9E 3 5 †  SHY (A11, SYA, SAY)

Stores Y AND (highbyte of addr. + 1) at addr.
unstable: sometimes 'AND (H+1)' is dropped, page boundary crossings may not work (with the highbyte of the value used as the highbyte of the address)
Y AND (H+1) > M
N Z C I D V       addressing assembler opc bytes cycles absolut,X SHY oper,X 9C 3 5 †  SLO (ASO)

ASL oper + ORA oper
M = C < [76543210] < 0, A OR M > A
N Z C I D V + + +    addressing assembler opc bytes cycles zeropage SLO oper 07 2 5 zeropage,X SLO oper,X 17 2 6 absolute SLO oper 0F 3 6 absolut,X SLO oper,X 1F 3 7 absolut,Y SLO oper,Y 1B 3 7 (indirect,X) SLO (oper,X) 03 2 8 (indirect),Y SLO (oper),Y 13 2 8  SRE (LSE)

LSR oper + EOR oper
M = 0 > [76543210] > C, A EOR M > A
N Z C I D V + + +    addressing assembler opc bytes cycles zeropage SRE oper 47 2 5 zeropage,X SRE oper,X 57 2 6 absolute SRE oper 4F 3 6 absolut,X SRE oper,X 5F 3 7 absolut,Y SRE oper,Y 5B 3 7 (indirect,X) SRE (oper,X) 43 2 8 (indirect),Y SRE (oper),Y 53 2 8  TAS (XAS, SHS)

Puts A AND X in SP and stores A AND X AND (highbyte of addr. + 1) at addr.
unstable: sometimes 'AND (H+1)' is dropped, page boundary crossings may not work (with the highbyte of the value used as the highbyte of the address)
A AND X > SP, A AND X AND (H+1) > M
N Z C I D V       addressing assembler opc bytes cycles absolut,Y TAS oper,Y 9B 3 5 †  USBC (SBC)

SBC oper + NOP
effectively same as normal SBC immediate, instr. E9.
A  M  C̅ > A
N Z C I D V + + +   + addressing assembler opc bytes cycles immediate USBC #oper EB 2 2  NOPs (including DOP, TOP)

Instructions effecting in 'no operations' in various address modes. Operands are ignored.
N Z C I D V       opc addressing bytes cycles 1A implied 1 2 3A implied 1 2 5A implied 1 2 7A implied 1 2 DA implied 1 2 FA implied 1 2 80 immediate 2 2 82 immediate 2 2 89 immediate 2 2 C2 immediate 2 2 E2 immediate 2 2 04 zeropage 2 3 44 zeropage 2 3 64 zeropage 2 3 14 zeropage,X 2 4 34 zeropage,X 2 4 54 zeropage,X 2 4 74 zeropage,X 2 4 D4 zeropage,X 2 4 F4 zeropage,X 2 4 0C absolute 3 4 1C absolut,X 3 4* 3C absolut,X 3 4* 5C absolut,X 3 4* 7C absolut,X 3 4* DC absolut,X 3 4* FC absolut,X 3 4*  JAM (KIL, HLT)

These instructions freeze the CPU.
The processor will be trapped infinitely in T1 phase with $FF on the data bus. — Reset required.
Instruction codes: 02, 12, 22, 32, 42, 52, 62, 72, 92, B2, D2, F2
Have a look at this table of the instruction layout in order to see how most of these
"illegal" instructions are a result of executing both instructions at c=1 and c=2 in
a given slot (same column, rows immediately above) at once.
Where c is the lowest two bits of the instruction code. E.g., "SAX abs", instruction
code $8F, binary 10001111, is "STA abs", 10001101 ($8D) and "STX abs", 10001110 ($8E).
Honorable Mention: Rev. A 6502 ROR, PreJune 1976
Famously, the Rev. A 6502 as delivered from September 1975 to June 1976 had a
"ROR bug". However, the "ROR" instruction isn't only missing from the original
documentation, as it turns out, the chip is actually missing crucial control lines,
which would have been required to make this instruction work. The instruction is
simply not implemented and it wasn't even part of the design. (This was actually
added on popular demand in Rev. B, as rumor has it, demand by Steve Wozniak. Even,
if not true, this makes for a good story. And how could there be a page on the 6502
without mentioning "Woz" once?) So, for all means, "ROR" is an undocumented or
"illegal" instruction on the Rev. A 6502.
And this is how ROR
behaves on these Rev. A chips, much like ASL
: it shifts all bits
to the left, shifting in a zero bit at the LSB side, but, unlike ASL
, it does not
shift the highbit into the carry. (So there are no connections to the carry at all.)
 ROR Rev. A (preJune 1976)

As ASL, but does not update the carry.
N and Z flags are set correctly for the operation performed.
[76543210] < 0
N Z C I D V + +     addressing assembler opc bytes cycles accumulator ROR A 6A 1 2 zeropage ROR oper 66 2 5 zeropage,X ROR oper,X 76 2 6 absolute ROR oper 6E 3 6 absolute,X ROR oper,X 7E 3 7
Compare Instructions
The 6502 MPU features three basic compare instructions in various address modes:
Instruction  Comparison

CMP  Accumulator and operand
CPX  X register and operand
CPY  Y register and operand
The various compare instructions subtract the operand from the respective register
(as if the carry was set) without setting the result and adjust the N, Z, and C
flags accordingly to this operation.
Flags will be set as follows:
Relation  Z  C  N

register < operand  0  0  signbit of result
register = operand  1  1  0
register > operand  0  1  signbit of result
Mind that the negative flag is not significant and all conditions may be evaluated
by checking the carry and/or zero flag(s).
A Primer of 6502 Arithmetic Operations
The 6502 processor features two basic arithmetic instructions, ADC
, ADd with Carry,
and SBC
, SuBtract with Carry. As the names suggest, these provide addition and
subtraction for single byte operands and results. However, operations are not
limited to a single byte range, which is where the carry flag comes in, providing
the means for a singlebit carry (or borrow), to combine operations over several
bytes.
In order to accomplish this, the carry is included in each of these operations:
for additions, it is added (much like another operand); for subtractions, which are
just an addition using the inverse of the operand (complement value of the operand),
the role of the carry is inverted, as well.
Therefore, it is crucial to set up the carry appropriatly: fo additions, the carry
has to be initially cleared (using CLC
), while for subtractions, it must be initally
set (using SEC
— more on SBC
below).
;ADC: A = A + M + C CLC ;clear carry in preparation LDA #2 ;load 2 into the accumulator ADD #3 ;add 3 > now 5 in accumulator ;SBC: A = A  M  C̅ ("C̅": "not carry") SEC ;set carry in preparation LDA #15 ;load 15 into the accumulator SBC #8 ;subtract 8 > now 7 in accumulator
Note: Here, we used direct mode, indicated by the prefix "#" before the operand, to
directly load a literal value. If there is no such "#" prefix, we generally mean
to use the value stored at the address, which is given by the operand. As we
will see in the next example.)
To combine this for 16bit values (2 bytes each), we simply chain the instructions
for the next bytes to operate on, but this time without setting or clearing the carry.
Supposing two 16bit values in
$1000 ... first argument, low byte $1001 ... first argument, high byte $1002 ... second argument, low byte $1003 ... second argument, high byte
and
$1004 ... result, low byte $1005 ... result, high byte
we perform a 16bit addition by:
CLC ;prepare carry for addition LDA $1000 ;load value at address $1000 into A (low byte of first argument) ADC $1002 ;add low byte of second argument at $1002 STA $1004 ;store low byte of result at $1004 LDA $1001 ;load high byte of first argument ADC $1003 ;add high byte of second argument STA $1005 ;store high byte of result (result in $1004 and $1005)
and, conversely, for a 16bit subtraction:
SEC ;prepare carry for subtraction LDA $1000 ;load value at address $1000 into A (low byte of first argument) SBC $1002 ;subtract low byte of second argument at $1002 STA $1004 ;store low byte of result at $1004 LDA $1001 ;load high byte of first argument SBC $1003 ;subtract high byte of second argument STA $1005 ;store high byte of result (result in $1004 and $1005)
Note: Another, important preparatory step is to set the processor into binary
mode by use of the CLD
(CLear Decimal flag) instruction. (Compare the section
on decimal mode below.) This has to be done only once.
Signed Values
Operations for unsigned and signed values are principally the same, the only
difference being in how we interpret the values. Generally, the 6502 uses what
is known as two's complement to represent negative values.
(In earlier computers,something known as ones' complement was used, where we
simply flip all bits to their opposite state to represent a negative value.
While simple, this came with a few drawbacks, like an additional value of
negative zero, which are overcome by two's complement.)
In two's complement representation, we simply flip all the bits in a byte to
their opposite (the same as an XOR by $FF
) and then add 1 to this.
E.g., to represent 4:,
(We here use "$" to indicate a hexadecimal number and "%" for binary notation.
A dot is used to separate the high and lownibble, i.e. group of 4 bits.)
%0000.0100 4 XOR %1111.1111 255  %1111.1011 complement (all bits flipped) + 1  %1111.1100 4, two's complement
Thus, in a single byte, we may represent values in the range
from 128 (%1000.0000 or $80) to +127 (%0111.1111 or $7F)
A notable feature is that the highest value bit (first bit from the left) will
always be 1 for a negative value and always be 0 for a positive one, for which
it is also known as the sign bit. Whenever we interpret a value as a signed
number, a set sign bit indicates a negative value.
This works just the same for larger values, e.g., for a signed 16bit value:
512 = %1111.1110.0000.0000 = $FE $00 516 = %1111.1101.1111.1100 = $FD $FC (mind how the +1 step carries over)
Notably, the binary operations are still the same as with unsigned values and
provide the expected results:
100 %0110.0100 $64 + 24 %1110.1000 $E8  76 %0100.1100 $4C (+ carry)
Note: We may now see how SBC
actually works, by adding ones' complement of
the operand to the accumulator. If we add 1 from the carry to the result,
this effectively results in a subtraction in two's complement (the inverse
of the operand + 1). If the carry happens to be zero, the result falls
short by 1 in terms of two's complement, which is equivalent to adding 1
to the operand before the subtraction. Thus, the carry either provides
the correction required for a valid two's complement representation or,
if missing, results in a subtraction including a binary borrow.
FLags with ADC and SBC
Besides the carry flag (C), which allows us to chain multibyte operations, the
CPU sets the following flags on the result of an arithmetic operation:
zero flag (Z) ........ set if the result is zero, else unset negative flag (N) ... the N flag always reflects the sign bit of the result overflow flag (V) ... indicates overflow in signed operations
The latter may require explanation: how is signed overflow different from
the carry flag? The overflow flag is about a certain ambiguity of the sign bit
and the negative flag in signed context: if operands are of the same sign, the
case may occure, where the sign bit flips (as indicated by a change of the
negative flag), while the result is still of the same sign. This condition is
indicated by the overflow flag. Notably, such an overflow can never occur, when
the operands are of opposite signs.
E.g., adding positive $40 to positive $40:
Acc Acc binary NVDIZC flags LDA #$40 $40 %0100.0000 000000 ADC #$40 $80 %1000.0000 110000
Here, the change of the sign bit is unrelated to the actual value in the
accumulator, it is merely a consequence of carry propagation from bit 6 to
bit 7, the sign bit. Since both operands are positive, the result must be
positive, as well.
The overflow flag (V) is of interest in signed context only and has no meaning
in unsigned context.
Decimal Mode (BCD)
Besides binary arithmetic, the 6502 processor supports a second mode, binary
coded decimal (BCD), where each byte, rather than representing a range of 0…255,
represents two decimal digits packed into a single byte. For this, a byte is
thought divided into two sections of 4 bits, the high and the lownibble. Only
values from 0…9 are used for each nibble and a byte can represent a range of a
2digit decimal value only, as in 0…99.
E.g.,
14 %0001.0100 $14 98 %1001.1000 $98
Mind how this intuitively translates to hexadecimal notation, where figures
A…F are never used.
Whether or not the processor is in decimal mode is determined by the decimal
flag (D). If it is set (using SED
) the processor will use BCD arithmetic.
If it is cleared (using CLD
), the processor is in binary mode.
Decimal mode only affects instructions ADC
and SBC
(but not INC
or DEC
.)
Examples:
SED CLC LDA #$12 ADC #$44 ;accumulator now holds $56 SED CLC LDA #$28 ADC #$14 ;accumulator now holds $42
Mind that BCD mode is always unsigned:
Acc NVDIZC flags SED SEC LDA #0 $00 001011 SBC #1 $99 101000
The carry flag and the zero flag work in decimal mode as expected.
The negative flag is set similar to binary mode (and of questionable value.)
The overflow flag has no meaning in decimal mode.
Multibyte operations are just as in decimal mode: We first prepare the carry
and then chain operations of the individual bytes in increasing value order,
starting with the lowest value pair.
(It may be important to note that Western Design Center (WDC) version of
the processor, the 65C02, always clears the decimal flag when it enters an
interrupt, while the original NMOS version of the 6502 does not.)
6502 Jump Vectors and Stack Operations
The 256 bytes processor stack of the 6502 is located at $0100 ... $01FF in
memory, growing down from top to bottom.
There are three 2byte address locations at the very top end of the 64K address
space serving as jump vectors for reset/startup and interrupt operations:
$FFFA, $FFFB ... NMI (NonMaskable Interrupt) vector
$FFFC, $FFFD ... RES (Reset) vector
$FFFE, $FFFF ... IRQ (Interrupt Request) vector
As an interrupt occurs, any instruction currently processed is completed first.
Only then, the value of the program counter (PC) is put in highlow order onto
the stack, followed by the value currently in the status register, and control
will be transferred to the address location found in the respective interrupt
vector. The registers stored on the stack are recovered at the end of an
interrupt routine, as control is transferred back to the interrupted code by
the RTI instruction.
Similarly, as a JSR instruction is encountered, PC is dumped onto the stack
and recovered by the JSR instruction. (Here, the value stored is actually the
address before the location, the program will eventually return to. Thus, the
effective return address is PC+1.)
Curious Interrupt Behavior
 If the instruction was a taken branch instruction with 3 cycles execution time (without crossing page boundaries), the interrupt will trigger only after an extra CPU cycle.
 On the NMOS6502, an NMI hardware interrupt occuring at the start of a BRK intruction will hijack the BRK instruction, meanining, the BRK instruction will be executed as normal, but the NMI vector will be used instead of the IRQ vector.
 The 65C02 will clear the decimal flag on any interrupts (and BRK).
The Break Flag and the Stack
Interrupts and stack operations involving the status register (or P register)
are the only instances, the break flag appears (namely on the stack).
It has no representation in the CPU and can't be accessed by any instruction.
 The break flag will be set to on (1), whenever the transfer was caused by
software (BRK or PHP).  The break flag will be set to zero (0), whenever the transfer was caused
by a hardware interrupt.  The break flag will be masked and cleared (0), whenever transferred from
the stack to the status register, either by PLP or during a return from
interrupt (RTI).
Therefore, it's somewhat difficult to inspect the break flag in order to
discern a software interrupt (BRK) from a hardware interrupt (NMI or IRQ) and
the mechanism is seldom used. Accessing a break mark put in the extra byte
following a BRK instruction is even more cumbersome and probably involves
indexed zeropage operations.
Bit 5 (unused) of the status register will be set to 1, whenever the
register is pushed to the stack. Bits 5 and 4 will always be ignored, when
transferred to the status register.
E.g.,1)
SR: N V  B D I Z C 0 0   0 0 1 1 PHP > 0 0 1 1 0 0 1 1 = $33 PLP < 0 0   0 0 1 1 = $03 but: PLA < 0 0 1 1 0 0 1 1 = $332)
LDA #$32 ;00110010 PHA > 0 0 1 1 0 0 1 0 = $32 PLP < 0 0   0 0 1 0 = $023)
LDA #$C0 PHA > 1 1 0 0 0 0 0 0 = $C0 LDA #$08 PHA > 0 0 0 0 1 0 0 0 = $08 LDA #$12 PHA > 0 0 0 1 0 0 1 0 = $12 RTI SR: 0 0   0 0 1 0 = $02 PC: $C008
Mind that most emulators are displaying the status register (SR or P) in the
state as it would be currently pushed to the stack, with bits 4 and 5 on, adding
a bias of $30 to the register value. Here, we chose to rather omit this virtual
presence of these bits, since there isn't really a slot for them in the hardware.
6502 Instruction Layout
The 6502 instruction table is laid out according to a pattern abc, where
a and b are an octal number each, followed by a group of two binary digits c,
as in the bitvector "aaabbbcc".
a  a  a  b  b  b  c  c
bit  7  6  5  4  3  2  1  0

(0…7)  (0…7)  (0…3)
Example:
All ROR instructions share a = 3 and c = 2 (3b2) with the address mode in b.
At the same time, all instructions addressing the zeropage share b = 1 (a1c).
abc = 312
Notably, there are no legal opcodes defined where c = 3, accounting for the
empty columns in the usual, hexadecimal view of the instruction table.
(For compactness empty rows where c = 3 are omitted from the tables below.)
The following table lists the instruction set, rows sorted by c, then a.
Generally, instructions of a kind are typically found in rows as a combination
of a and c, and address modes are in columns b.
However, there are a few exception to this rule, namely, where bits 0 of both
c and b are low (c = 0, 2; b = 0, 2, 4, 6) and combinations of c and b select
a group of related operations. (E.g., c=0 ∧ b=4: branch, c=0 ∧ b=6: set flag)
c  a  b

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $08PHP impl  $10BPL rel  $18CLC impl
1  $20JSR abs  $24BIT zpg  $28PLP impl  $2CBIT abs  $30BMI rel  $38SEC impl
2  $40RTI impl  $48PHA impl  $4CJMP abs  $50BVC rel  $58CLI impl
3  $60RTS impl  $68PLA impl  $6CJMP ind  $70BVS rel  $78SEI impl
4  $84STY zpg  $88DEY impl  $8CSTY abs  $90BCC rel  $94STY zpg,X  $98TYA impl
5  $A0LDY #  $A4LDY zpg  $A8TAY impl  $ACLDY abs  $B0BCS rel  $B4LDY zpg,X  $B8CLV impl  $BCLDY abs,X
6  $C0CPY #  $C4CPY zpg  $C8INY impl  $CCCPY abs  $D0BNE rel  $D8CLD impl
7  $E0CPX #  $E4CPX zpg  $E8INX impl  $ECCPX abs  $F0BEQ rel  $F8SED impl
1  0  $01ORA X,ind  $05ORA zpg  $09ORA #  $0DORA abs  $11ORA ind,Y  $15ORA zpg,X  $19ORA abs,Y  $1DORA abs,X
1  $21AND X,ind  $25AND zpg  $29AND #  $2DAND abs  $31AND ind,Y  $35AND zpg,X  $39AND abs,Y  $3DAND abs,X
2  $41EOR X,ind  $45EOR zpg  $49EOR #  $4DEOR abs  $51EOR ind,Y  $55EOR zpg,X  $59EOR abs,Y  $5DEOR abs,X
3  $61ADC X,ind  $65ADC zpg  $69ADC #  $6DADC abs  $71ADC ind,Y  $75ADC zpg,X  $79ADC abs,Y  $7DADC abs,X
4  $81STA X,ind  $85STA zpg  $8DSTA abs  $91STA ind,Y  $95STA zpg,X  $99STA abs,Y  $9DSTA abs,X
5  $A1LDA X,ind  $A5LDA zpg  $A9LDA #  $ADLDA abs  $B1LDA ind,Y  $B5LDA zpg,X  $B9LDA abs,Y  $BDLDA abs,X
6  $C1CMP X,ind  $C5CMP zpg  $C9CMP #  $CDCMP abs  $D1CMP ind,Y  $D5CMP zpg,X  $D9CMP abs,Y  $DDCMP abs,X
7  $E1SBC X,ind  $E5SBC zpg  $E9SBC #  $EDSBC abs  $F1SBC ind,Y  $F5SBC zpg,X  $F9SBC abs,Y  $FDSBC abs,X
2  0  $06ASL zpg  $0AASL A  $0EASL abs  $16ASL zpg,X  $1EASL abs,X
1  $26ROL zpg  $2AROL A  $2EROL abs  $36ROL zpg,X  $3EROL abs,X
2  $46LSR zpg  $4ALSR A  $4ELSR abs  $56LSR zpg,X  $5ELSR abs,X
3  $66ROR zpg  $6AROR A  $6EROR abs  $76ROR zpg,X  $7EROR abs,X
4  $86STX zpg  $8ATXA impl  $8ESTX abs  $96STX zpg,Y  $9ATXS impl
5  $A2LDX #  $A6LDX zpg  $AATAX impl  $AELDX abs  $B6LDX zpg,Y  $BATSX impl  $BELDX abs,Y
6  $C6DEC zpg  $CADEX impl  $CEDEC abs  $D6DEC zpg,X  $DEDEC abs,X
7  $E6INC zpg  $EANOP impl  $EEINC abs  $F6INC zpg,X  $FEINC abs,X
Note: The operand of instructions like "ASL A" is often depicted as implied, as well.
Mind that, for any practical reasons, the two notations are interchangeable for any
instructions involving the accumulator. — However, there are subtle differences.
A rotated view, rows as combinations of c and b, and columns as a:
c  b  a

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $20JSR abs  $40RTI impl  $60RTS impl  $A0LDY #  $C0CPY #  $E0CPX #
1  $24BIT zpg  $84STY zpg  $A4LDY zpg  $C4CPY zpg  $E4CPX zpg
2  $08PHP impl  $28PLP impl  $48PHA impl  $68PLA impl  $88DEY impl  $A8TAY impl  $C8INY impl  $E8INX impl
3  $2CBIT abs  $4CJMP abs  $6CJMP ind  $8CSTY abs  $ACLDY abs  $CCCPY abs  $ECCPX abs
4  $10BPL rel  $30BMI rel  $50BVC rel  $70BVS rel  $90BCC rel  $B0BCS rel  $D0BNE rel  $F0BEQ rel
5  $94STY zpg,X  $B4LDY zpg,X
6  $18CLC impl  $38SEC impl  $58CLI impl  $78SEI impl  $98TYA impl  $B8CLV impl  $D8CLD impl  $F8SED impl
7  $BCLDY abs,X
1  0  $01ORA X,ind  $21AND X,ind  $41EOR X,ind  $61ADC X,ind  $81STA X,ind  $A1LDA X,ind  $C1CMP X,ind  $E1SBC X,ind
1  $05ORA zpg  $25AND zpg  $45EOR zpg  $65ADC zpg  $85STA zpg  $A5LDA zpg  $C5CMP zpg  $E5SBC zpg
2  $09ORA #  $29AND #  $49EOR #  $69ADC #  $A9LDA #  $C9CMP #  $E9SBC #
3  $0DORA abs  $2DAND abs  $4DEOR abs  $6DADC abs  $8DSTA abs  $ADLDA abs  $CDCMP abs  $EDSBC abs
4  $11ORA ind,Y  $31AND ind,Y  $51EOR ind,Y  $71ADC ind,Y  $91STA ind,Y  $B1LDA ind,Y  $D1CMP ind,Y  $F1SBC ind,Y
5  $15ORA zpg,X  $35AND zpg,X  $55EOR zpg,X  $75ADC zpg,X  $95STA zpg,X  $B5LDA zpg,X  $D5CMP zpg,X  $F5SBC zpg,X
6  $19ORA abs,Y  $39AND abs,Y  $59EOR abs,Y  $79ADC abs,Y  $99STA abs,Y  $B9LDA abs,Y  $D9CMP abs,Y  $F9SBC abs,Y
7  $1DORA abs,X  $3DAND abs,X  $5DEOR abs,X  $7DADC abs,X  $9DSTA abs,X  $BDLDA abs,X  $DDCMP abs,X  $FDSBC abs,X
2  0  $A2LDX #
1  $06ASL zpg  $26ROL zpg  $46LSR zpg  $66ROR zpg  $86STX zpg  $A6LDX zpg  $C6DEC zpg  $E6INC zpg
2  $0AASL A  $2AROL A  $4ALSR A  $6AROR A  $8ATXA impl  $AATAX impl  $CADEX impl  $EANOP impl
3  $0EASL abs  $2EROL abs  $4ELSR abs  $6EROR abs  $8ESTX abs  $AELDX abs  $CEDEC abs  $EEINC abs
4
5  $16ASL zpg,X  $36ROL zpg,X  $56LSR zpg,X  $76ROR zpg,X  $96STX zpg,Y  $B6LDX zpg,Y  $D6DEC zpg,X  $F6INC zpg,X
6  $9ATXS impl  $BATSX impl
7  $1EASL abs,X  $3EROL abs,X  $5ELSR abs,X  $7EROR abs,X  $BELDX abs,Y  $DEDEC abs,X  $FEINC abs,X
Finally, a more complex view, the instruction set listed by rows as
combinations of a and c, and b in columns:
Address modes are either a property of b (even columns) or combinations
of b and c (odd columns with aspecific rowindex modulus 3; i.e., every
third row in a given column). In those latter columns, first and third
rows (c = 0 and c = 2) refer to the same kind of general operation.
Load, store and transfer instructions as well as comparisons are typically
found in the lower half of the table, while most of the arithmetical and
logical operations as well as stack and jump instructions are found in the
upper half. (However, mind the exception of SBC as a "mirror" of ADC.)
a  c  b

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $08PHP impl  $10BPL rel  $18CLC impl
1  $01ORA X,ind  $05ORA zpg  $09ORA #  $0DORA abs  $11ORA ind,Y  $15ORA zpg,X  $19ORA abs,Y  $1DORA abs,X
2  $06ASL zpg  $0AASL A  $0EASL abs  $16ASL zpg,X  $1EASL abs,X
1  0  $20JSR abs  $24BIT zpg  $28PLP impl  $2CBIT abs  $30BMI rel  $38SEC impl
1  $21AND X,ind  $25AND zpg  $29AND #  $2DAND abs  $31AND ind,Y  $35AND zpg,X  $39AND abs,Y  $3DAND abs,X
2  $26ROL zpg  $2AROL A  $2EROL abs  $36ROL zpg,X  $3EROL abs,X
2  0  $40RTI impl  $48PHA impl  $4CJMP abs  $50BVC rel  $58CLI impl
1  $41EOR X,ind  $45EOR zpg  $49EOR #  $4DEOR abs  $51EOR ind,Y  $55EOR zpg,X  $59EOR abs,Y  $5DEOR abs,X
2  $46LSR zpg  $4ALSR A  $4ELSR abs  $56LSR zpg,X  $5ELSR abs,X
3  0  $60RTS impl  $68PLA impl  $6CJMP ind  $70BVS rel  $78SEI impl
1  $61ADC X,ind  $65ADC zpg  $69ADC #  $6DADC abs  $71ADC ind,Y  $75ADC zpg,X  $79ADC abs,Y  $7DADC abs,X
2  $66ROR zpg  $6AROR A  $6EROR abs  $76ROR zpg,X  $7EROR abs,X
4  0  $84STY zpg  $88DEY impl  $8CSTY abs  $90BCC rel  $94STY zpg,X  $98TYA impl
1  $81STA X,ind  $85STA zpg  $8DSTA abs  $91STA ind,Y  $95STA zpg,X  $99STA abs,Y  $9DSTA abs,X
2  $86STX zpg  $8ATXA impl  $8ESTX abs  $96STX zpg,Y  $9ATXS impl
5  0  $A0LDY #  $A4LDY zpg  $A8TAY impl  $ACLDY abs  $B0BCS rel  $B4LDY zpg,X  $B8CLV impl  $BCLDY abs,X
1  $A1LDA X,ind  $A5LDA zpg  $A9LDA #  $ADLDA abs  $B1LDA ind,Y  $B5LDA zpg,X  $B9LDA abs,Y  $BDLDA abs,X
2  $A2LDX #  $A6LDX zpg  $AATAX impl  $AELDX abs  $B6LDX zpg,Y  $BATSX impl  $BELDX abs,Y
6  0  $C0CPY #  $C4CPY zpg  $C8INY impl  $CCCPY abs  $D0BNE rel  $D8CLD impl
1  $C1CMP X,ind  $C5CMP zpg  $C9CMP #  $CDCMP abs  $D1CMP ind,Y  $D5CMP zpg,X  $D9CMP abs,Y  $DDCMP abs,X
2  $C6DEC zpg  $CADEX impl  $CEDEC abs  $D6DEC zpg,X  $DEDEC abs,X
7  0  $E0CPX #  $E4CPX zpg  $E8INX impl  $ECCPX abs  $F0BEQ rel  $F8SED impl
1  $E1SBC X,ind  $E5SBC zpg  $E9SBC #  $EDSBC abs  $F1SBC ind,Y  $F5SBC zpg,X  $F9SBC abs,Y  $FDSBC abs,X
2  $E6INC zpg  $EANOP impl  $EEINC abs  $F6INC zpg,X  $FEINC abs,X
"Illegal" Opcodes Revisited
So, how do the "illegal" opcodes fit into this decoding scheme?
Let's have a look — "illegals" are shown on grey background.
The first view — rows by c and a and columns as b — reveals a strict relation
beetween address modes and columns:
c  a  b

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $04NOP zpg  $08PHP impl  $0CNOP abs  $10BPL rel  $14NOP zpg,X  $18CLC impl  $1CNOP abs,X
1  $20JSR abs  $24BIT zpg  $28PLP impl  $2CBIT abs  $30BMI rel  $34NOP zpg,X  $38SEC impl  $3CNOP abs,X
2  $40RTI impl  $44NOP zpg  $48PHA impl  $4CJMP abs  $50BVC rel  $54NOP zpg,X  $58CLI impl  $5CNOP abs,X
3  $60RTS impl  $64NOP zpg  $68PLA impl  $6CJMP ind  $70BVS rel  $74NOP zpg,X  $78SEI impl  $7CNOP abs,X
4  $80NOP #  $84STY zpg  $88DEY impl  $8CSTY abs  $90BCC rel  $94STY zpg,X  $98TYA impl  $9CSHY abs,X
5  $A0LDY #  $A4LDY zpg  $A8TAY impl  $ACLDY abs  $B0BCS rel  $B4LDY zpg,X  $B8CLV impl  $BCLDY abs,X
6  $C0CPY #  $C4CPY zpg  $C8INY impl  $CCCPY abs  $D0BNE rel  $D4NOP zpg,X  $D8CLD impl  $DCNOP abs,X
7  $E0CPX #  $E4CPX zpg  $E8INX impl  $ECCPX abs  $F0BEQ rel  $F4NOP zpg,X  $F8SED impl  $FCNOP abs,X
1  0  $01ORA X,ind  $05ORA zpg  $09ORA #  $0DORA abs  $11ORA ind,Y  $15ORA zpg,X  $19ORA abs,Y  $1DORA abs,X
1  $21AND X,ind  $25AND zpg  $29AND #  $2DAND abs  $31AND ind,Y  $35AND zpg,X  $39AND abs,Y  $3DAND abs,X
2  $41EOR X,ind  $45EOR zpg  $49EOR #  $4DEOR abs  $51EOR ind,Y  $55EOR zpg,X  $59EOR abs,Y  $5DEOR abs,X
3  $61ADC X,ind  $65ADC zpg  $69ADC #  $6DADC abs  $71ADC ind,Y  $75ADC zpg,X  $79ADC abs,Y  $7DADC abs,X
4  $81STA X,ind  $85STA zpg  $89NOP #  $8DSTA abs  $91STA ind,Y  $95STA zpg,X  $99STA abs,Y  $9DSTA abs,X
5  $A1LDA X,ind  $A5LDA zpg  $A9LDA #  $ADLDA abs  $B1LDA ind,Y  $B5LDA zpg,X  $B9LDA abs,Y  $BDLDA abs,X
6  $C1CMP X,ind  $C5CMP zpg  $C9CMP #  $CDCMP abs  $D1CMP ind,Y  $D5CMP zpg,X  $D9CMP abs,Y  $DDCMP abs,X
7  $E1SBC X,ind  $E5SBC zpg  $E9SBC #  $EDSBC abs  $F1SBC ind,Y  $F5SBC zpg,X  $F9SBC abs,Y  $FDSBC abs,X
2  0  $02JAM  $06ASL zpg  $0AASL A  $0EASL abs  $12JAM  $16ASL zpg,X  $1ANOP impl  $1EASL abs,X
1  $22JAM  $26ROL zpg  $2AROL A  $2EROL abs  $32JAM  $36ROL zpg,X  $3ANOP impl  $3EROL abs,X
2  $42JAM  $46LSR zpg  $4ALSR A  $4ELSR abs  $52JAM  $56LSR zpg,X  $5ANOP impl  $5ELSR abs,X
3  $62JAM  $66ROR zpg  $6AROR A  $6EROR abs  $72JAM  $76ROR zpg,X  $7ANOP impl  $7EROR abs,X
4  $82NOP #  $86STX zpg  $8ATXA impl  $8ESTX abs  $92JAM  $96STX zpg,Y  $9ATXS impl  $9ESHX abs,Y
5  $A2LDX #  $A6LDX zpg  $AATAX impl  $AELDX abs  $B2JAM  $B6LDX zpg,Y  $BATSX impl  $BELDX abs,Y
6  $C2NOP #  $C6DEC zpg  $CADEX impl  $CEDEC abs  $D2JAM  $D6DEC zpg,X  $DANOP impl  $DEDEC abs,X
7  $E2NOP #  $E6INC zpg  $EANOP impl  $EEINC abs  $F2JAM  $F6INC zpg,X  $FANOP impl  $FEINC abs,X
3  0  $03SLO X,ind  $07SLO zpg  $0BANC #  $0FSLO abs  $13SLO ind,Y  $17SLO zpg,X  $1BSLO abs,Y  $1FSLO abs,X
1  $23RLA X,ind  $27RLA zpg  $2BANC #  $2FRLA abs  $33RLA ind,Y  $37RLA zpg,X  $3BRLA abs,Y  $3FRLA abs,X
2  $43SRE X,ind  $47SRE zpg  $4BALR #  $4FSRE abs  $53SRE ind,Y  $57SRE zpg,X  $5BSRE abs,Y  $5FSRE abs,X
3  $63RRA X,ind  $67RRA zpg  $6BARR #  $6FRRA abs  $73RRA ind,Y  $77RRA zpg,X  $7BRRA abs,Y  $7FRRA abs,X
4  $83SAX X,ind  $87SAX zpg  $8BANE #  $8FSAX abs  $93SHA ind,Y  $97SAX zpg,Y  $9BTAS abs,Y  $9FSHA abs,Y
5  $A3LAX X,ind  $A7LAX zpg  $ABLXA #  $AFLAX abs  $B3LAX ind,Y  $B7LAX zpg,Y  $BBLAS abs,Y  $BFLAX abs,Y
6  $C3DCP X,ind  $C7DCP zpg  $CBSBX #  $CFDCP abs  $D3DCP ind,Y  $D7DCP zpg,X  $DBDCP abs,Y  $DFDCP abs,X
7  $E3ISC X,ind  $E7ISC zpg  $EBUSBC #  $EFISC abs  $F3ISC ind,Y  $F7ISC zpg,X  $FBISC abs,Y  $FFISC abs,X
And, again, as a rotated view, rows as combinations of c and b, and columns as a.
We may observe a close relationship between the legal and the undocumented
instructions in the vertical (quarter)segements of each column.
c  b  a

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $20JSR abs  $40RTI impl  $60RTS impl  $80NOP #  $A0LDY #  $C0CPY #  $E0CPX #
1  $04NOP zpg  $24BIT zpg  $44NOP zpg  $64NOP zpg  $84STY zpg  $A4LDY zpg  $C4CPY zpg  $E4CPX zpg
2  $08PHP impl  $28PLP impl  $48PHA impl  $68PLA impl  $88DEY impl  $A8TAY impl  $C8INY impl  $E8INX impl
3  $0CNOP abs  $2CBIT abs  $4CJMP abs  $6CJMP ind  $8CSTY abs  $ACLDY abs  $CCCPY abs  $ECCPX abs
4  $10BPL rel  $30BMI rel  $50BVC rel  $70BVS rel  $90BCC rel  $B0BCS rel  $D0BNE rel  $F0BEQ rel
5  $14NOP zpg,X  $34NOP zpg,X  $54NOP zpg,X  $74NOP zpg,X  $94STY zpg,X  $B4LDY zpg,X  $D4NOP zpg,X  $F4NOP zpg,X
6  $18CLC impl  $38SEC impl  $58CLI impl  $78SEI impl  $98TYA impl  $B8CLV impl  $D8CLD impl  $F8SED impl
7  $1CNOP abs,X  $3CNOP abs,X  $5CNOP abs,X  $7CNOP abs,X  $9CSHY abs,X  $BCLDY abs,X  $DCNOP abs,X  $FCNOP abs,X
1  0  $01ORA X,ind  $21AND X,ind  $41EOR X,ind  $61ADC X,ind  $81STA X,ind  $A1LDA X,ind  $C1CMP X,ind  $E1SBC X,ind
1  $05ORA zpg  $25AND zpg  $45EOR zpg  $65ADC zpg  $85STA zpg  $A5LDA zpg  $C5CMP zpg  $E5SBC zpg
2  $09ORA #  $29AND #  $49EOR #  $69ADC #  $89NOP #  $A9LDA #  $C9CMP #  $E9SBC #
3  $0DORA abs  $2DAND abs  $4DEOR abs  $6DADC abs  $8DSTA abs  $ADLDA abs  $CDCMP abs  $EDSBC abs
4  $11ORA ind,Y  $31AND ind,Y  $51EOR ind,Y  $71ADC ind,Y  $91STA ind,Y  $B1LDA ind,Y  $D1CMP ind,Y  $F1SBC ind,Y
5  $15ORA zpg,X  $35AND zpg,X  $55EOR zpg,X  $75ADC zpg,X  $95STA zpg,X  $B5LDA zpg,X  $D5CMP zpg,X  $F5SBC zpg,X
6  $19ORA abs,Y  $39AND abs,Y  $59EOR abs,Y  $79ADC abs,Y  $99STA abs,Y  $B9LDA abs,Y  $D9CMP abs,Y  $F9SBC abs,Y
7  $1DORA abs,X  $3DAND abs,X  $5DEOR abs,X  $7DADC abs,X  $9DSTA abs,X  $BDLDA abs,X  $DDCMP abs,X  $FDSBC abs,X
2  0  $02JAM  $22JAM  $42JAM  $62JAM  $82NOP #  $A2LDX #  $C2NOP #  $E2NOP #
1  $06ASL zpg  $26ROL zpg  $46LSR zpg  $66ROR zpg  $86STX zpg  $A6LDX zpg  $C6DEC zpg  $E6INC zpg
2  $0AASL A  $2AROL A  $4ALSR A  $6AROR A  $8ATXA impl  $AATAX impl  $CADEX impl  $EANOP impl
3  $0EASL abs  $2EROL abs  $4ELSR abs  $6EROR abs  $8ESTX abs  $AELDX abs  $CEDEC abs  $EEINC abs
4  $12JAM  $32JAM  $52JAM  $72JAM  $92JAM  $B2JAM  $D2JAM  $F2JAM
5  $16ASL zpg,X  $36ROL zpg,X  $56LSR zpg,X  $76ROR zpg,X  $96STX zpg,Y  $B6LDX zpg,Y  $D6DEC zpg,X  $F6INC zpg,X
6  $1ANOP impl  $3ANOP impl  $5ANOP impl  $7ANOP impl  $9ATXS impl  $BATSX impl  $DANOP impl  $FANOP impl
7  $1EASL abs,X  $3EROL abs,X  $5ELSR abs,X  $7EROR abs,X  $9ESHX abs,Y  $BELDX abs,Y  $DEDEC abs,X  $FEINC abs,X
3  0  $03SLO X,ind  $23RLA X,ind  $43SRE X,ind  $63RRA X,ind  $83SAX X,ind  $A3LAX X,ind  $C3DCP X,ind  $E3ISC X,ind
1  $07SLO zpg  $27RLA zpg  $47SRE zpg  $67RRA zpg  $87SAX zpg  $A7LAX zpg  $C7DCP zpg  $E7ISC zpg
2  $0BANC #  $2BANC #  $4BALR #  $6BARR #  $8BANE #  $ABLXA #  $CBSBX #  $EBUSBC #
3  $0FSLO abs  $2FRLA abs  $4FSRE abs  $6FRRA abs  $8FSAX abs  $AFLAX abs  $CFDCP abs  $EFISC abs
4  $13SLO ind,Y  $33RLA ind,Y  $53SRE ind,Y  $73RRA ind,Y  $93SHA ind,Y  $B3LAX ind,Y  $D3DCP ind,Y  $F3ISC ind,Y
5  $17SLO zpg,X  $37RLA zpg,X  $57SRE zpg,X  $77RRA zpg,X  $97SAX zpg,Y  $B7LAX zpg,Y  $D7DCP zpg,X  $F7ISC zpg,X
6  $1BSLO abs,Y  $3BRLA abs,Y  $5BSRE abs,Y  $7BRRA abs,Y  $9BTAS abs,Y  $BBLAS abs,Y  $DBDCP abs,Y  $FBISC abs,Y
7  $1FSLO abs,X  $3FRLA abs,X  $5FSRE abs,X  $7FRRA abs,X  $9FSHA abs,Y  $BFLAX abs,Y  $DFDCP abs,X  $FFISC abs,X
And, finally, in a third view, we may observe how each of the rows of "illegal"
instructions at c = 3 inherits behavior from the two rows with c = 1 and c = 2
immediately above, combining the operations of these instructions with the
address mode of the respective instruction at c = 1.
(Mind that in binary 3 is the combination of 2 and 1, bits 0 and 1 both set.)
We may further observe that additional NOPs result from noneffective or non
sensical combinations of operations and address modes, e.g., instr. $89, which
would be "STA #", storing the contents of the accumulator in the operand.
Some other instructions, typically combinations involving indirect indexed
addressing, fail over unresolved timing issues entirely, resulting in a "JAM".
(We me also observe that there is indeed a difference in accumulator mode
— as in "OPC A" — and immediate addressing. E.g., $6A, "ROR A", is a valid
instruction, while instruction $7A, "ROR implied", is a NOP.
We may also note how "ROR X,ind" at $62 and "ROR ind,Y" at $72 fail entirely
and result in a JAM.)
a  c  b

0  1  2  3  4  5  6  7
0  0  $00BRK impl  $04NOP zpg  $08PHP impl  $0CNOP abs  $10BPL rel  $14NOP zpg,X  $18CLC impl  $1CNOP abs,X
1  $01ORA X,ind  $05ORA zpg  $09ORA #  $0DORA abs  $11ORA ind,Y  $15ORA zpg,X  $19ORA abs,Y  $1DORA abs,X
2  $02JAM  $06ASL zpg  $0AASL A  $0EASL abs  $12JAM  $16ASL zpg,X  $1ANOP impl  $1EASL abs,X
3  $03SLO X,ind  $07SLO zpg  $0BANC #  $0FSLO abs  $13SLO ind,Y  $17SLO zpg,X  $1BSLO abs,Y  $1FSLO abs,X
1  0  $20JSR abs  $24BIT zpg  $28PLP impl  $2CBIT abs  $30BMI rel  $34NOP zpg,X  $38SEC impl  $3CNOP abs,X
1  $21AND X,ind  $25AND zpg  $29AND #  $2DAND abs  $31AND ind,Y  $35AND zpg,X  $39AND abs,Y  $3DAND abs,X
2  $22JAM  $26ROL zpg  $2AROL A  $2EROL abs  $32JAM  $36ROL zpg,X  $3ANOP impl  $3EROL abs,X
3  $23RLA X,ind  $27RLA zpg  $2BANC #  $2FRLA abs  $33RLA ind,Y  $37RLA zpg,X  $3BRLA abs,Y  $3FRLA abs,X
2  0  $40RTI impl  $44NOP zpg  $48PHA impl  $4CJMP abs  $50BVC rel  $54NOP zpg,X  $58CLI impl  $5CNOP abs,X
1  $41EOR X,ind  $45EOR zpg  $49EOR #  $4DEOR abs  $51EOR ind,Y  $55EOR zpg,X  $59EOR abs,Y  $5DEOR abs,X
2  $42JAM  $46LSR zpg  $4ALSR A  $4ELSR abs  $52JAM  $56LSR zpg,X  $5ANOP impl  $5ELSR abs,X
3  $43SRE X,ind  $47SRE zpg  $4BALR #  $4FSRE abs  $53SRE ind,Y  $57SRE zpg,X  $5BSRE abs,Y  $5FSRE abs,X
3  0  $60RTS impl  $64NOP zpg  $68PLA impl  $6CJMP ind  $70BVS rel  $74NOP zpg,X  $78SEI impl  $7CNOP abs,X
1  $61ADC X,ind  $65ADC zpg  $69ADC #  $6DADC abs  $71ADC ind,Y  $75ADC zpg,X  $79ADC abs,Y  $7DADC abs,X
2  $62JAM  $66ROR zpg  $6AROR A  $6EROR abs  $72JAM  $76ROR zpg,X  $7ANOP impl  $7EROR abs,X
3  $63RRA X,ind  $67RRA zpg  $6BARR #  $6FRRA abs  $73RRA ind,Y  $77RRA zpg,X  $7BRRA abs,Y  $7FRRA abs,X
4  0  $80NOP #  $84STY zpg  $88DEY impl  $8CSTY abs  $90BCC rel  $94STY zpg,X  $98TYA impl  $9CSHY abs,X
1  $81STA X,ind  $85STA zpg  $89NOP #  $8DSTA abs  $91STA ind,Y  $95STA zpg,X  $99STA abs,Y  $9DSTA abs,X
2  $82NOP #  $86STX zpg  $8ATXA impl  $8ESTX abs  $92JAM  $96STX zpg,Y  $9ATXS impl  $9ESHX abs,Y
3  $83SAX X,ind  $87SAX zpg  $8BANE #  $8FSAX abs  $93SHA ind,Y  $97SAX zpg,Y  $9BTAS abs,Y  $9FSHA abs,Y
5  0  $A0LDY #  $A4LDY zpg  $A8TAY impl  $ACLDY abs  $B0BCS rel  $B4LDY zpg,X  $B8CLV impl  $BCLDY abs,X
1  $A1LDA X,ind  $A5LDA zpg  $A9LDA #  $ADLDA abs  $B1LDA ind,Y  $B5LDA zpg,X  $B9LDA abs,Y  $BDLDA abs,X
2  $A2LDX #  $A6LDX zpg  $AATAX impl  $AELDX abs  $B2JAM  $B6LDX zpg,Y  $BATSX impl  $BELDX abs,Y
3  $A3LAX X,ind  $A7LAX zpg  $ABLXA #  $AFLAX abs  $B3LAX ind,Y  $B7LAX zpg,Y  $BBLAS abs,Y  $BFLAX abs,Y
6  0  $C0CPY #  $C4CPY zpg  $C8INY impl  $CCCPY abs  $D0BNE rel  $D4NOP zpg,X  $D8CLD impl  $DCNOP abs,X
1  $C1CMP X,ind  $C5CMP zpg  $C9CMP #  $CDCMP abs  $D1CMP ind,Y  $D5CMP zpg,X  $D9CMP abs,Y  $DDCMP abs,X
2  $C2NOP #  $C6DEC zpg  $CADEX impl  $CEDEC abs  $D2JAM  $D6DEC zpg,X  $DANOP impl  $DEDEC abs,X
3  $C3DCP X,ind  $C7DCP zpg  $CBSBX #  $CFDCP abs  $D3DCP ind,Y  $D7DCP zpg,X  $DBDCP abs,Y  $DFDCP abs,X
7  0  $E0CPX #  $E4CPX zpg  $E8INX impl  $ECCPX abs  $F0BEQ rel  $F4NOP zpg,X  $F8SED impl  $FCNOP abs,X
1  $E1SBC X,ind  $E5SBC zpg  $E9SBC #  $EDSBC abs  $F1SBC ind,Y  $F5SBC zpg,X  $F9SBC abs,Y  $FDSBC abs,X
2  $E2NOP #  $E6INC zpg  $EANOP impl  $EEINC abs  $F2JAM  $F6INC zpg,X  $FANOP impl  $FEINC abs,X
3  $E3ISC X,ind  $E7ISC zpg  $EBUSBC #  $EFISC abs  $F3ISC ind,Y  $F7ISC zpg,X  $FBISC abs,Y  $FFISC abs,X
As a final observation, the two highly unstable instructions "ANE" (XAA) and
"LXA" (LAX immediate) involving a "magic constant" are both combinations of
an accumulator operation and an interregister transfer between the
accumulator and the X register:
$8B (a=5, c=3, b=2): ANE # = STA # (NOP) + TXA
(A OR CONST) AND X AND oper > A
$AB (a=4, c=3, b=2): LXA # = LDA # + TAX
(A OR CONST) AND oper > A > X
In the case of ANE, the contents of the accumulator is put on the internal
data lines at the same time as the contents of the Xregister, while there's
also the operand read for the immediate operation, with the result
transferred to the accumulator.
In the case of LXA, the immediate operand and the contents of the accumulator
are competing for the imput lines, while the result will be transferred to
both the accumulator and the X register.
The outcome of these competing, noisy conditions depends on the production
series of the chip, and maybe even on environmental conditions. This effects
in an ORing of the accumulator with the "magic constant" combined with an
ANDing of the competing inputs. The final transfer to the target register(s)
then seems to work as may be expected.
(This ANDing of competing values susggests that the 6502 is working internally
in active negative logic, where all data lines are first set to high and then
cleared for any zero bits. This also suggests that the "magic constant" stands
merely for a partial transfer of the contents of the accumulator.)
Much of this also applies to "TAS" (XAS, SHS), $9B, but here the extra cycles
for indexed addressing seem to contribute to the conflict being resolved
without this "magic constant". However, TAS is still unstable.
Simlarly the peculiar group involving the highbyte of the provided address + 1
(as in "H+1") — SHA (AHX, AXA), SHX (A11, SXA, XAS), SHY (A11, SYA, SAY) —
involves a conflict of an attempt to store the accumulator and another register
being put on the data lines at the same time, and the operations required to
determine the target address for for indexed addressing. Again, the competing
values are ANDed and the instructions are unstable.
We may also observe that SHY is really the unimplemented instruction "STY abs,X"
and SHX is "STX abs,Y" with SHA being the combination of "LDA abs,X" and SHX.
We may conclude that these "illegal opcodes" or "undocumented instructions" are
really a textbook example of undefined behavior for undefined input patterns.
Generally speaking, for any instructions xxxxxx11 (c=3) both instructions at
xxxxxx01 (c=1) and xxxxxx10 (c=2) are started in a thread, with competing ouput
values on the internal data lines ANDed. For some combinations, this results
in a fragile race condition, while others are showing mostly stable behavior.
The addressing mode is generally determined by that of the instruction at c=1.
(It may be interesting that is doesn't matter, if any of the two threads jams,
as long as the timing for the other thread resolves. So there is no "JAM"
instruction at c=3.)
Pinout (NMOS 6502)
Vcc, Vss  supply voltage (Vcc: +5 V DC ± 5%, Vss: max. +7 V DC)
Φ_{0…2}  clock
AB0–AB15  address bus
DB0–DB7  data bus
R/W  read/write
RDY  ready
S.O.  set overflow (future I/O interface)
SYNC  sync (goes high on opcode fetch phase)
I̅R̅Q̅  interrupt request (active low)
N̅M̅I̅  non maskable interrupt (active low)
R̅E̅S̅  reset (active low)
N.C.  no connection
Source: MCS6500 Microcomputer Family Hardware Manual. MOS Technology, Inc., 1976.
The 65xxFamily:
Type  Features, Comments

6502  NMOS, 16 bit address bus, 8 bit data bus
6502A  accelerated version of 6502
6502C  accelerated version of 6502, additional halt pin, CMOS
65C02  WDC version, additional instructions and address modes, up to 14MHz
6503, 6505, 6506  12 bit address bus [4 KiB]
6504  13 bit address bus [8 KiB], no NMI
6507  13 bit address bus [8 KiB], no interrupt lines
6509  20 bit address bus [1 MiB] by bankswitching
6510  as 6502 with additional 6 bit I/Oport
6511  integrated micro controler with I/Oport, serial interface, and RAM (Rockwell)
65F11  as 6511, integrated FORTH interpreter
7501  as 6502, HMOS
8500  as 6510, CMOS
8502  as 6510 with switchable 2 MHz option, 7 bit I/Oport
65816 (65C816)  16 bit registers and ALU, 24 bit address bus [16 MiB], up to 24 MHz (Western Design Center)
65802 (65C802)  as 65816, pin compatible to 6502, 64 KiB address bus, up to 16 MHz
Site Notes
Disclaimer
Errors excepted. The information is provided for free and AS IS, therefore without any warranty;
without even the implied warranty of merchantability or fitness for a particular purpose.
See also the “Virtual 6502” suite of onlineprograms
 Virtual 6502 (6502/6510 emulator)
 6502 Assembler
 6502 Disassembler
External Links
 6502.org — the 6502 microprocessor resource
 visual6502.org — visual transistorlevel simulation of the 6502 CPU
 The Western Design Center, Inc. — designers of the 6502 (still thriving)
Presented by mass:werk.
